Material Stainless steel carbon steel

Workmanship Casting and polishing

Export Europe Australia

Packing Export standard packaging

Authentication Australia Europe

Application field Marine Engineering and Military Industry

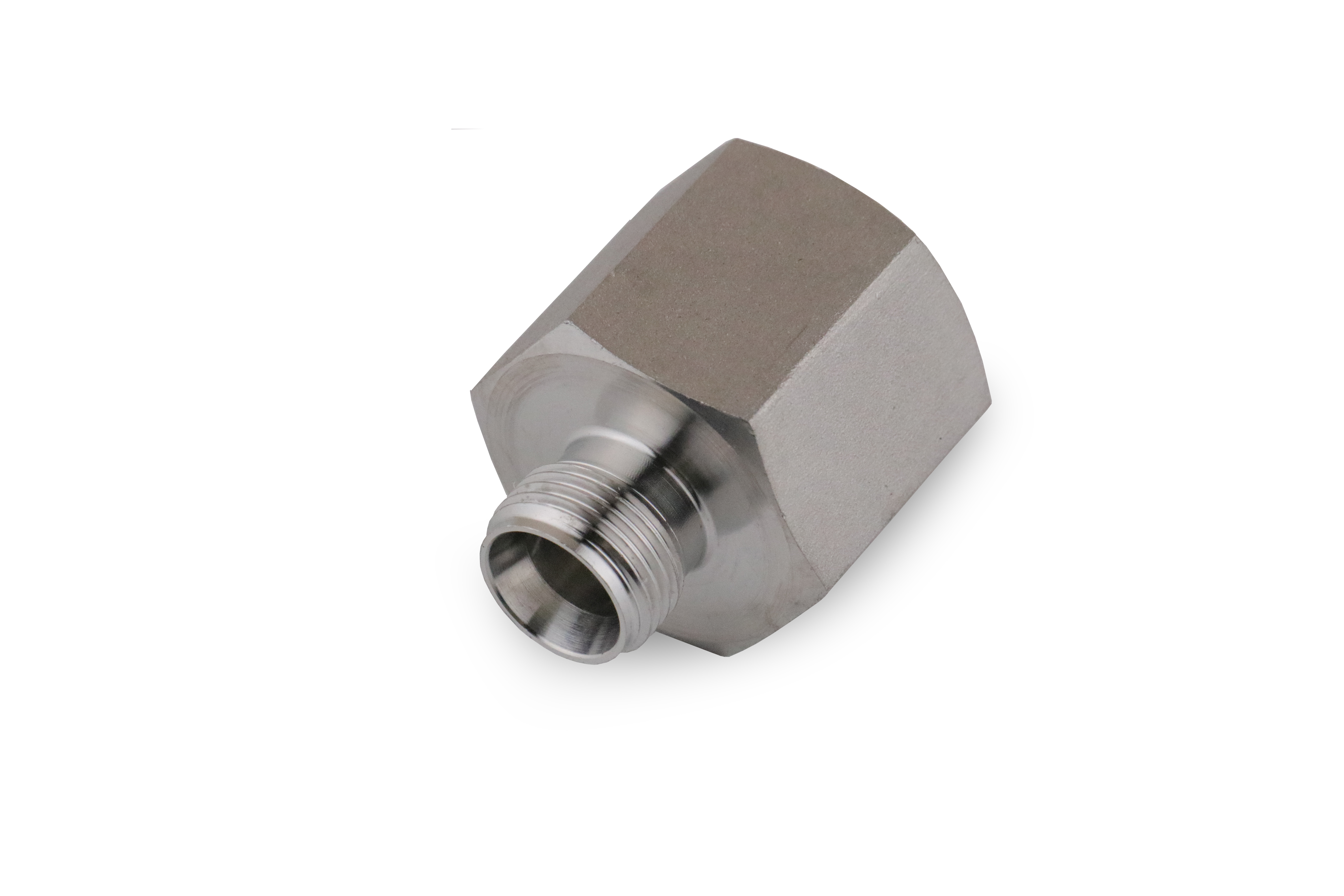

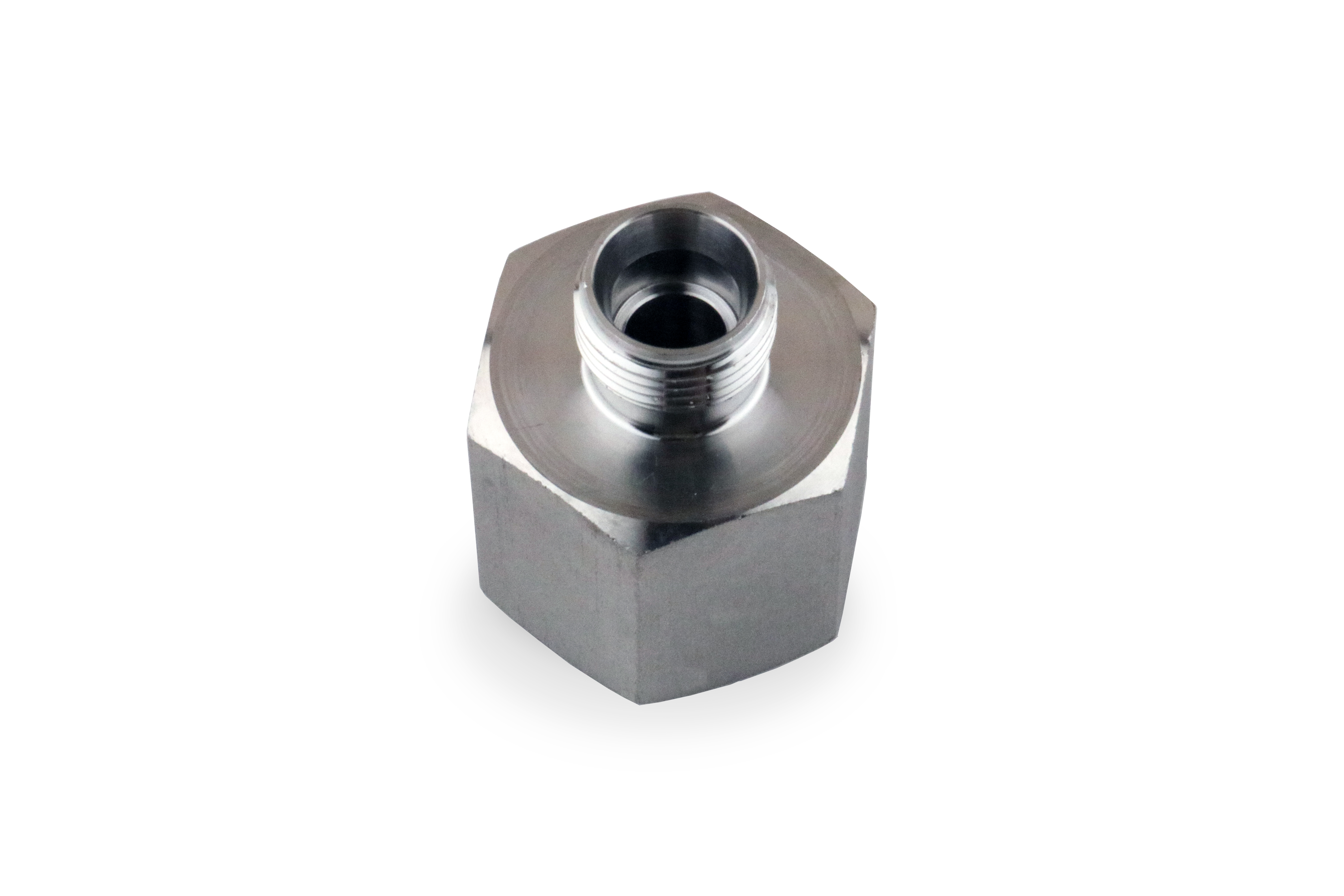

Category Double Ferrule Compression Fittings

86-21-54313808

Message

Detail

卡套管外径	NPT尺寸	基本订购号	尺寸Dimensions
Tube OD	NPT Size in.	Basic Ordering Number	A	D	E	F
尺寸、mm Dimensions,
1/8	1/8 1/4	EFMT2-2N EFMT2-4N	1.13 1.32	0.50	0.09	9/16 3/4
3/16	1/8	EFMT3-2N	1.17	0.54	0.12	9/16
1/4	1/8 1/4 3/8 1/2	EFMT4-2N EFMT4-4N EFMT4-6N EFMT4-8N	1.23 1.41 1.48 1.67	0.60	0.19	9/16 3/4 7/8 11/16
5/16	1/8 1/4	EFMT5-2N EFMT5-4N	1.26 1.45	0.64	0.25	9/16 3/4
3/8	1/8 1/4 3/8 1/2 3/4	EFMT6-2N EFMT6-4N EFMT6-6N EFMT6-8N EFMT8-12N	1.59 1.65 1.84 1.90	0.90	0.41	13/16 7/8 11/16 15/16
5/8	3/8 1/2 3/4	EFMT10-6N EFMT10-8N EFMT10-12N	1.65 1.84 1.90	0.96	0.96	15/16 11/16 15/16
3/4	1/2 3/4	EFMT12-8N EFMT12-12N	1.84 1.90	0.96	0.62	11/16 15/16
7/8	3/4	EFMT14-12N	1.96	1.02	0.72	15/16
1	3/4	EFMT16-12N EFMT16-16N	2.10 2.45	1.23	0.88	13/8 15/8
11/4	11/4	EFMT20-20N	2.94	1.62	1.09	21/8
11/2	11/2	EFMT24-24N	3.28	1.97	1.34	23/8
2	2	EFMT32-32N	4.00	2.66	1.81	27/8

卡套管外径	NPT尺寸	基本订购号	尺寸Dimensions
Tube OD	NPT Size in.	Basic Ordering Number	A	D	E	F
尺寸、mm Dimensions,
3	1/8 1/4	EFMT3M-2N EFMT3M-4N	28.7 33.5	12.9	2.4	14
4	1/8	EFMT4M-2N	29.7	13.7	2.4	14
6	1/8 1/4 3/8 1/2	EFMT6M-2N EFMT6M-4N EFMT6M-6N EFMT6M-8N	31.3 35.8 37.6 42.5	15.3	4.8	14 19 22 27
8	1/8 1/4 3/8 1/2	EFMT8M-2N EFMT8M-4N EFMT8M-6N EFMT8M-8N	32.1 37.0 38.5 43.3	16.2	6.4	15 19 22 27
10	1/4 3/8 1/2	EFMT10M-4N EFMT10M-6N EFMT10M-8N	37.8 39.4 44.2	17.2	7.9	19 22 27
12	1/4 3/8 1/2	EFMT12M-4N EFMT12M-6N EFMT12M-8N	40.3 41.9 46.7	22.8	9.5	22 22 27
15	1/2	EFMT15M-8N	46.7	24.4	11.9	27
16	1/2	EFMT16M-8N	46.9	24.4	12.7	27
20	1/2 3/4	EFMT20M-8N EFMT20M-12N	47.9 49.7	26.0	15.9	30 35
22	3/4 1	EFMT22M-12N EFMT22M-16N	49.7 57.9	26.0	18.3	35 41
25	3/4	EFMT25M-12N EFMT25M-16N	53.4 62.3	31.3	21.8	35 41
