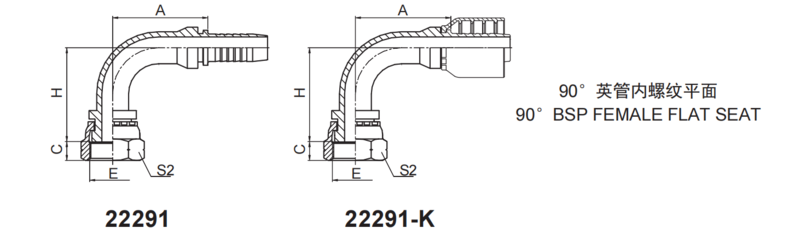

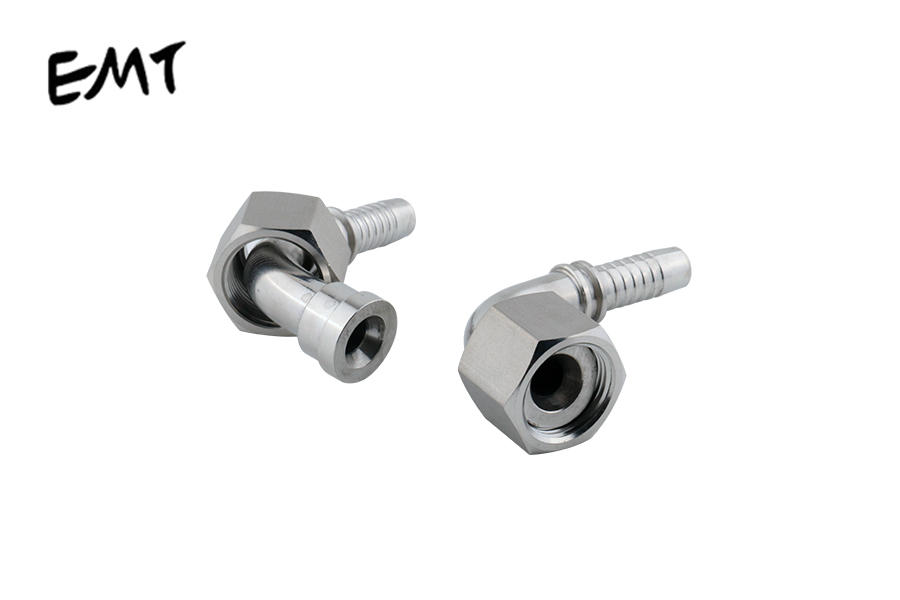

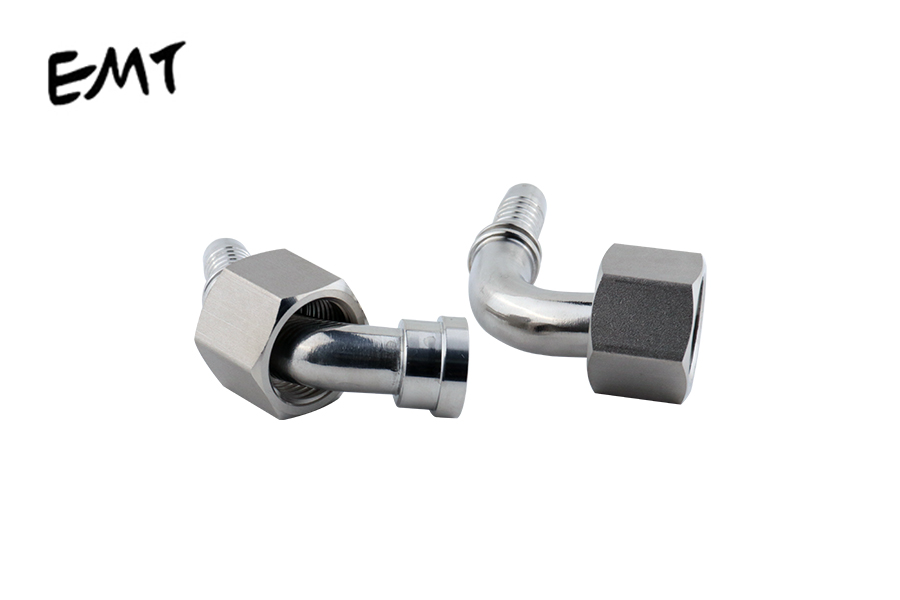

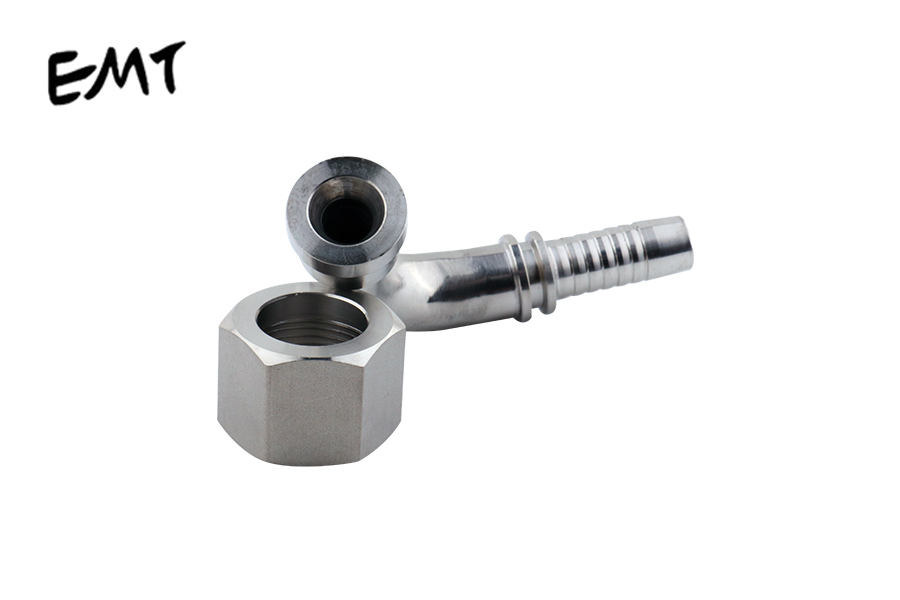

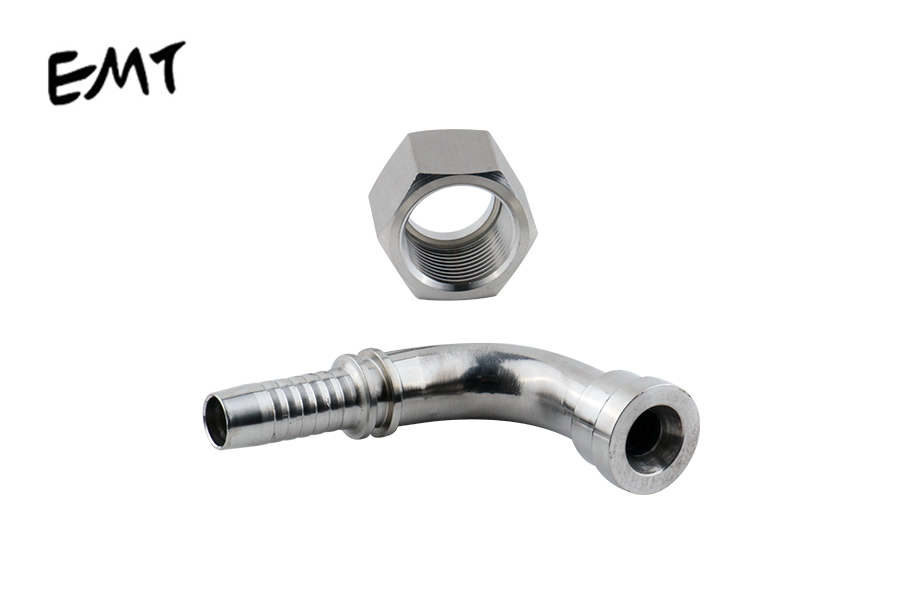

代号 PART NO.	螺纹 THREAD	胶管 HOSE BORE		尺寸 DIMMSIONS
代号 PART NO.	THREAD E	公称内径 DN	标号 DASH	A	C	H	S1
22291-04-04	G1/4"X19	6	04	30	8	34.5	19
22291-06-06	G3/8"X19	10	06	35.3	9	41.3	22
22291-08-08	G1/2"X14	12	08	41	10.5	48	27
22291-12-12	G3/4"X14	20	12	65.5	13.5	63.5	32
22291-16-16	G1"X11	25	16	76.7	15.5	70	41
22291-20-20W	G1.1/4"X11	32	20	91.5	15.5	82.5	50
22291-24-24W	G1.1/2"X11	40	24	109.4	17.5	98.5	55
注：1. 表中代号用于编织软管。 2. 如需用于缠绕软管代号改为 22292-xx-xx 3.型号后面加“K”为一体式胶管接头 Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 22292-xx-xx. 3.Suffix “K” is to order Integrated Hose Fitting
