Detail
| 代 号 PART NO. | 螺纹 THREAD | 胶管 HOSE BORE | 尺寸 DIMMSIONS | ||||
| THREAD E | 公称内径 DN | 标号 DASH | A | C | H | S1 | |
| 20791-12-04C | M12X1.25 | 6 | 4 | 30 | 9 | 33.5 | 17 |
| 20791-12-04 | M12X1.5 | 6 | 4 | 30 | 10 | 33.5 | 17 |
| 20791-14-04 | M14X1.5 | 6 | 4 | 30 | 8.5 | 34 | 19 |
| 20791-16-04 | M16X1.5 | 6 | 4 | 30 | 8 | 35 | 22 |
| 20791-16-05 | M16X1.5 | 8 | 5 | 30 | 8 | 38 | 22 |
| 20791-18-06 | M18X1.5 | 10 | 6 | 35.3 | 10 | 41.3 | 24 |
| 20791-22-08 | M22X1.5 | 12 | 8 | 41 | 10 | 48 | 27 |
| 20791-22-10 | M22X1.5 | 16 | 10 | 56 | 10 | 52.5 | 27 |
| 20791-27-10 | M27X1.5 | 16 | 10 | 56 | 11 | 54 | 32 |
| 20791-30-12 | M30X1.5 | 20 | 12 | 66.2 | 11 | 63.5 | 36 |
| 20791-33-12 | M33X2 | 20 | 12 | 65.5 | 13 | 63.5 | 41 |
| 20791-33-16 | M33X2 | 25 | 16 | 76.7 | 13 | 69 | 41 |
| 20791-36-12 | M36X2 | 20 | 12 | 65.5 | 14 | 63.5 | 41 |
| 20791-36-14 | M36X2 | 22 | 14 | 71.2 | 14 | 64.5 | 41 |
| 20791-39-16 | M39X2 | 25 | 16 | 76.7 | 14 | 70.5 | 46 |
| 20791-45-20W | M45X2 | 32 | 20 | 91.5 | 15 | 83 | 55 |
| 20791-52-20W | M52X2 | 32 | 20 | 93 | 17 | 84.5 | 60 |
| 20791-52-24W | M52X2 | 40 | 24 | 110.7 | 17 | 96.5 | 60 |
| 注：1. 表中代号用于编织软管。 2. 如需用于缠绕软管代号改为 20792-xx-xx。 3.型号后面加“K”为一体式胶管接头 Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 20792-xx-xx. 3.Suffix “K” is to order Integrated Hose Fitting | |||||||
Recommended Products

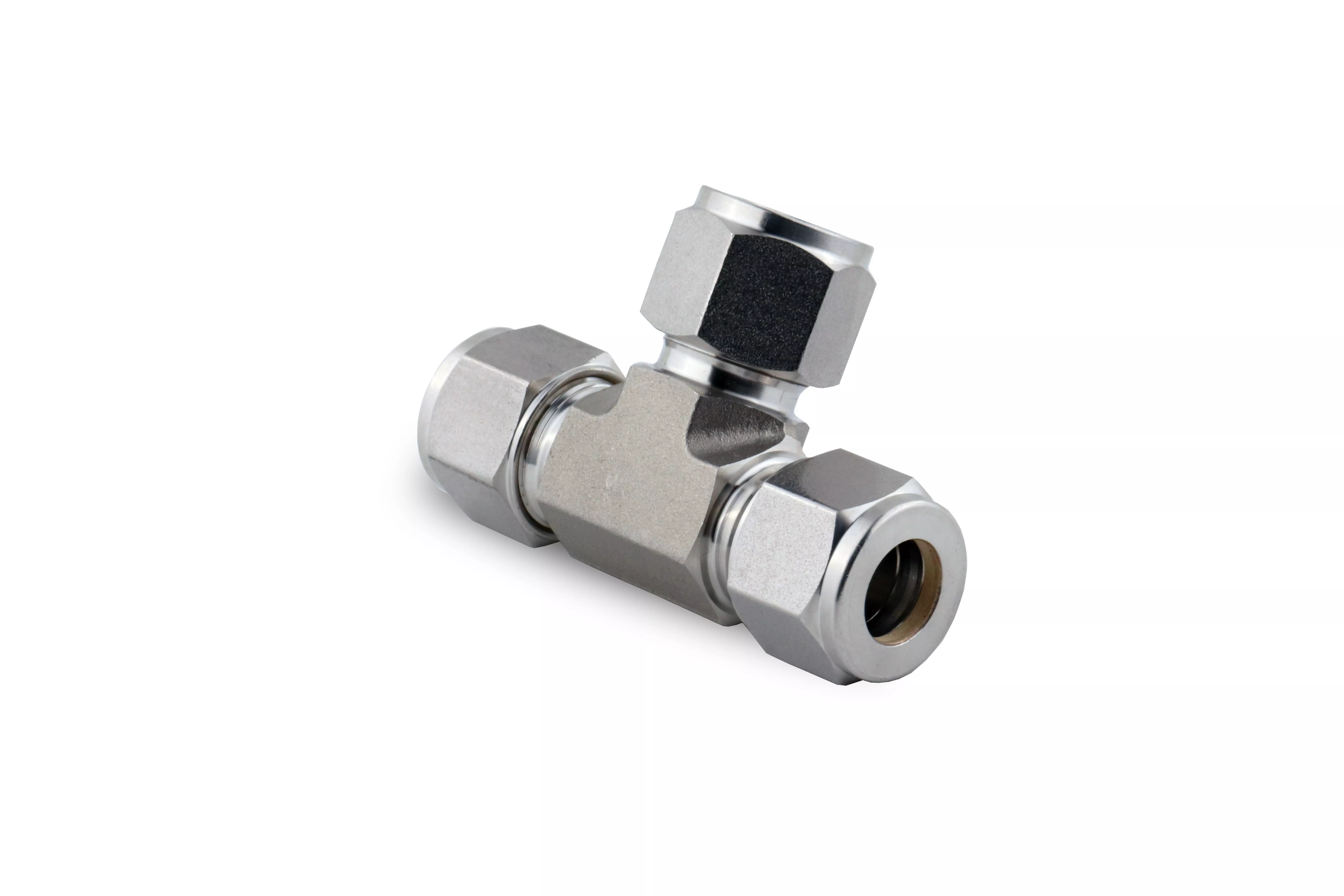

- 双卡套接头 EUTEUT EUT Pneumatic fittings

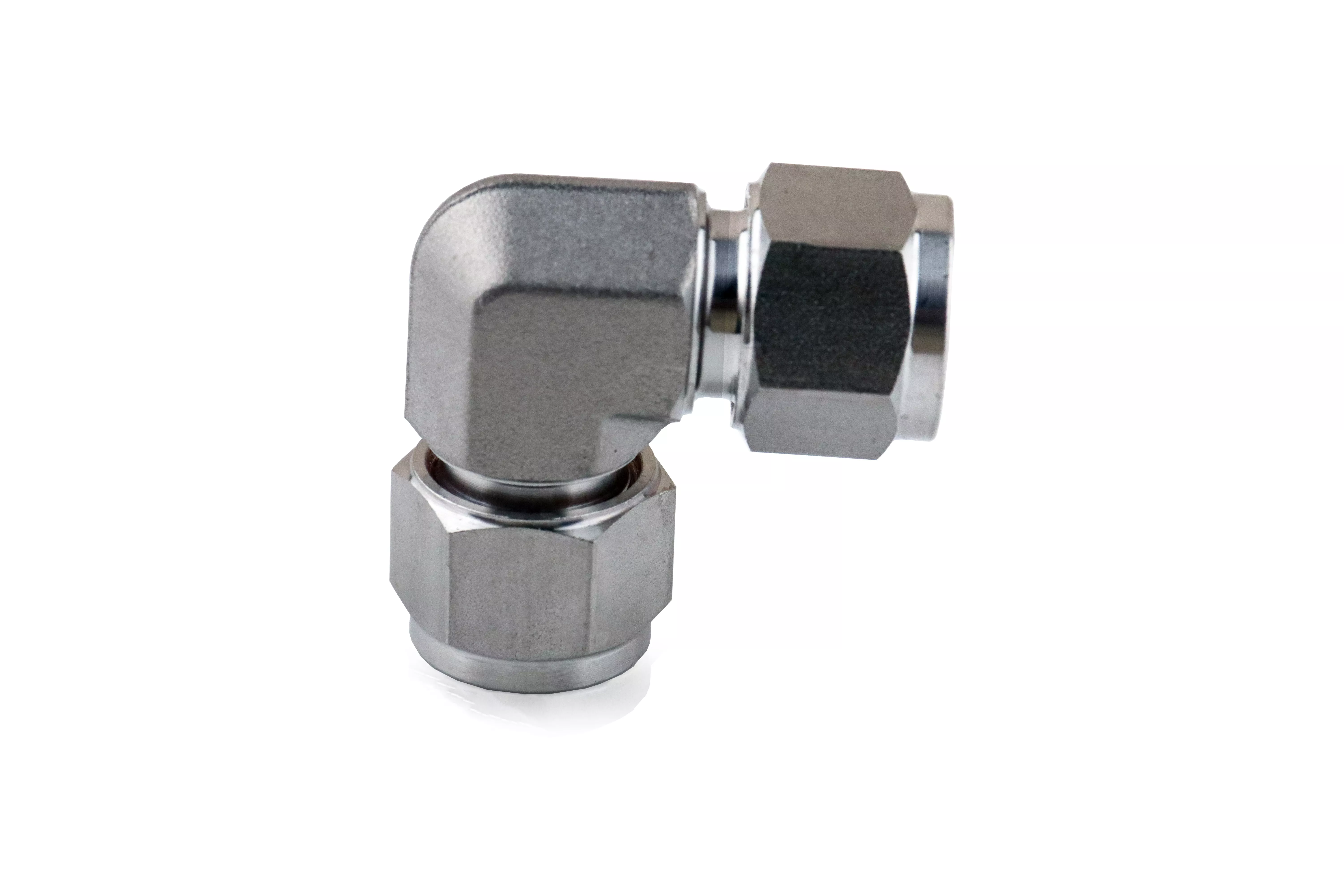

- 双卡套接头 EUEDual card sleeve connector EUE

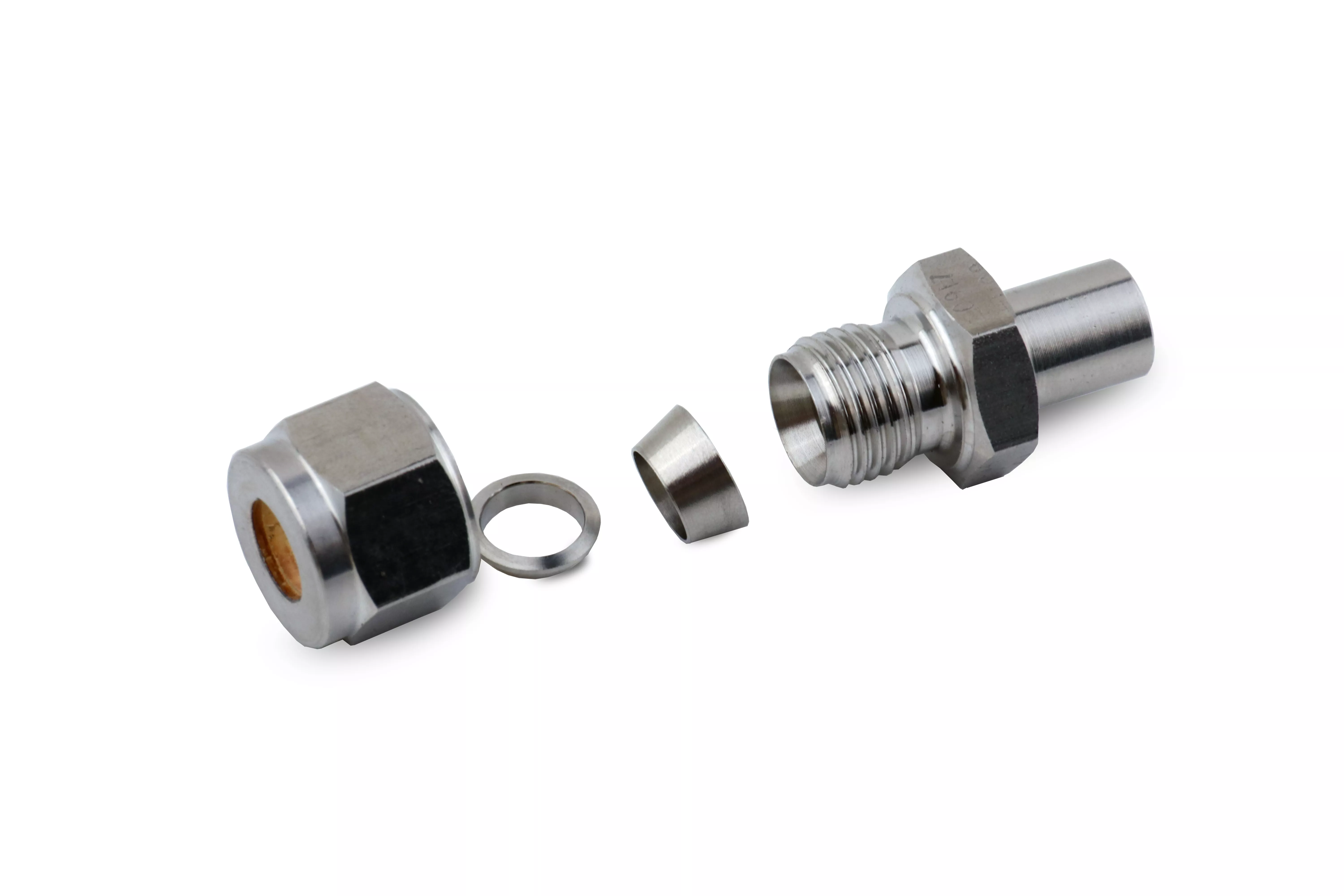

- 双卡套接头 EPWCDouble card sleeve connector EPWC
