AuthenticationISO system certification, certification from the four major classification societies
Application fieldMarine aviation rail transit

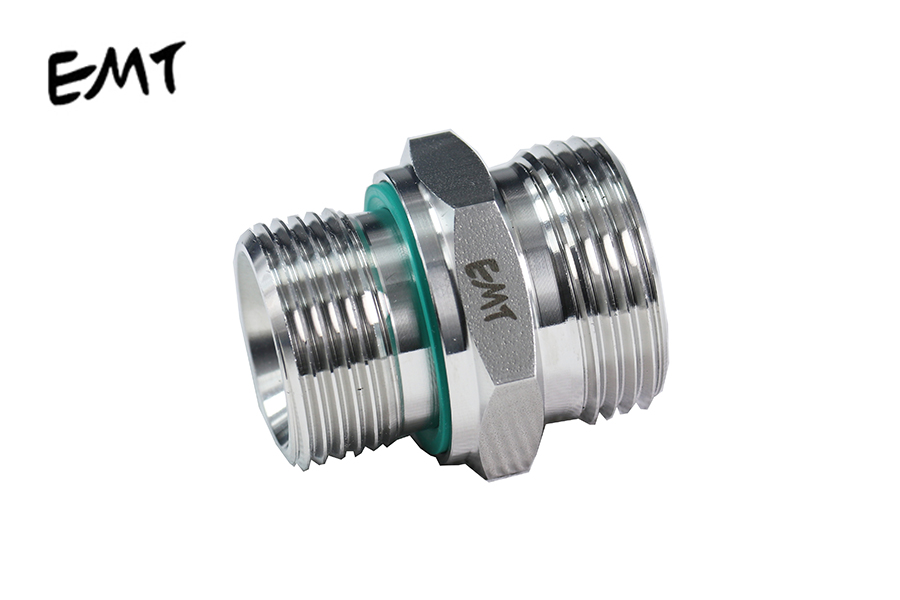

CategoryThreaded Fittings
86-21-54313808
Message
Detail

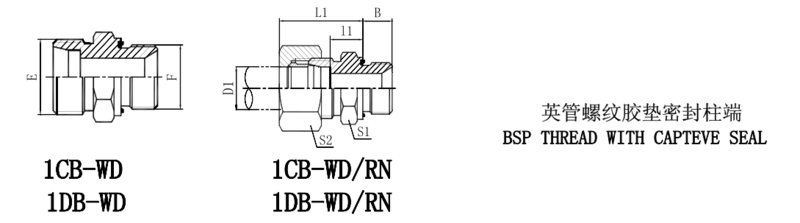

代 号
PART NO.
螺纹 THREAD
管子外径 TUBE O.D.
尺寸 DIMMSIONS
压力等级
MPa
E
F
D1
B
11
L1
S1
S2
1CB-12-02WD
M12X1.5
G1/8"X28
6
8
8.5
23.5
14
14
31.5
轻系列
L
1CB-12-04WD
M12X1.5
G1/4"X19
6
12
10
25
19
14
1CB-14-02WD
M14X1.5
G1/8"X28
8
8
9
24
14
17
1CB-14-04WD
M14X1.5
G1/4"X19
8
12
10
25
19
17
1CB-14-06WD
M14X1.5
G3/8"X19
8
12
11
26
22
17
1CB-16-04WD
M16X1.5
G1/4"X19
10
12
11
26
19
19
1CB-16-06WD
M16X1.5
G3/8"X19
10
12
12
27
22
19
1CB-16-08WD
M16X1.5
G1/2"X14
10
14
13
28
27
19
1CB-18-04WD
M18X1.5
G1/4"X19
12
12
12
27
19
22
1CB-18-06WD
M18X1.5
G3/8"X19
12
12
12
27
22
22
1CB-18-08WD
M18X1.5
G1/2"X14
12
14
13
28
27
22
1CB-22-06WD
M22X1.5
G3/8"X19
15
12
13
28
24
27
1CB-22-08WD
M22X1.5
G1/2"X14
15
14
14
29
27
27
1CB-26-08WD
M26X1.5
G1/2"X14
18
14
14.5
31
27
32
1CB-26-12WD
M26X1.5
G3/4"X14
18
16
14.5
31
32
32
1CB-30-12WD
M30X2
G3/4"X14
22
16
16.5
33
32
36
16
轻系列
L
1CB-36-16WD
M36X2
G1"X11
28
18
17.5
34
41
41
1CB-45-20WD
M45X2
G1.1/4"X11
35
20
17.5
39
50
50
1CB-52-24WD
M52X2
G1.1/2"X11
42
22
19
42
55
60
1DB-14-04WD
M14X1.5
G1/4"X19
6
12
15
30
19
17
63
重系列
L
1DB-16-04WD
M16X1.5
G1/4"X19
8
12
15
30
19
19
1DB-16-06WD
M16X1.5
G3/8"X19
_8
12
15
30
22
19
1DB-18-04WD
M18X1.5
G3/8"X19
10
12
14.5
31
19
22
1DB-18-06WD
M18X1.5
G3/8"X19
10
12
14.5
31
22
22
1DB-18-08WD
M18X1.5
G1/2"X14
10
14
17.5
34
27
22
1DB-20-04WD
M20X1.5
G1/4"X19
12
12
16.5
33
22
24
1DB-20-06WD
M20X1.5
G3/8"X19
12
12
16.5
33
22
24
1DB-20-08WD
M20X1.5
G1/2"X14
12
14
17.5
34
27
24
1DB-22-08WD
M22X1.5
G1/2"X14
14
14
19
37
27
27
1DB-24-06WD
M24X1.5
G3/8"X19
16
12
18
36.5
27
30
1DB-24-08WD
M24X1.5
G1/2"X14
16
14
18.5
37
27
30
1DB-24-12WD
M24X1.5
G3/4"X14
16
16
20.5
39
32
30
40
重系列
L
1DB-30-12WD
M30X2
G3/4"X14
20
16
20.5
42
32
36
1DB-36-08WD
M36X2
G1/2"X14
25
14
23
47
41
46
1DB-36-12WD
M36X2
G3/4"X14
25
16
23
47
41
46
1DB-36-16WD
M36X2
G"1X11
25
18
23
47
41
46
1DB-42-20WD
M42X2
G1.1/4"X11
30
20
23.5
47
50
50
1DB-52-24WD
M52X2
G1.1/2"X11
38
22
26
47
55
60
31.5重系列S
注:如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如1DB-20-08WB/RN。
Note: In case if you are interested to order the adapter in complete set with cutting ring
and nut ,it is necessary to insert suffix "RN"after our part no， for example 1DB-20-08WB/RN.
